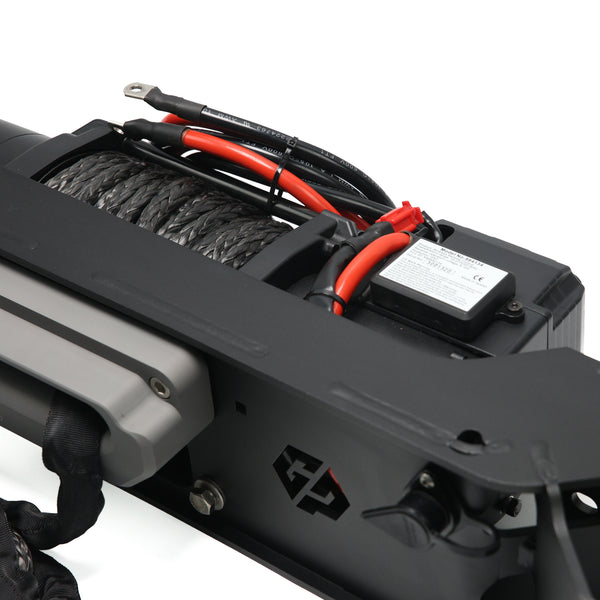

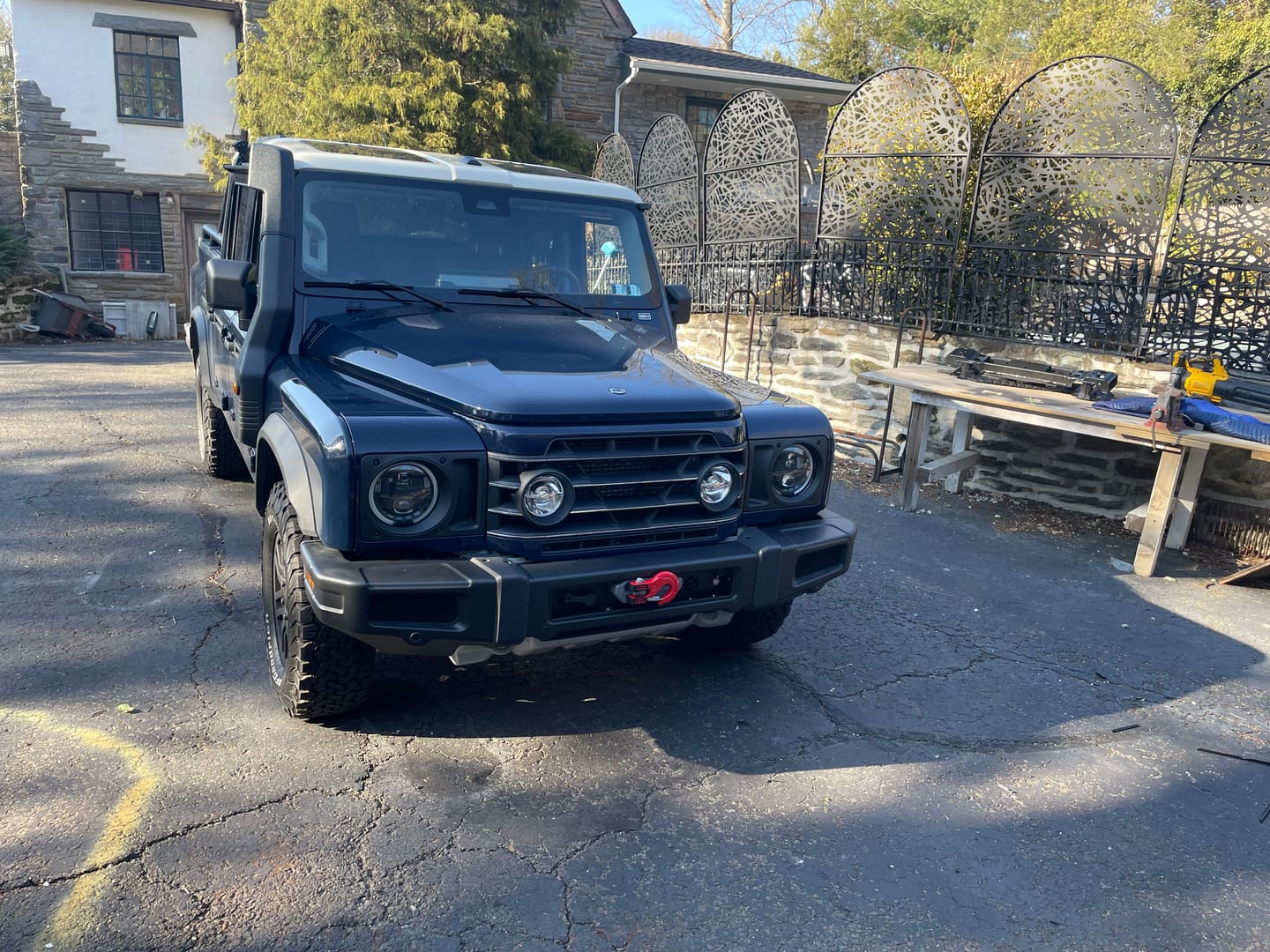

GP Factor Ineos Grenadier Hidden 12.5K Winch Kit - Synthetic Line

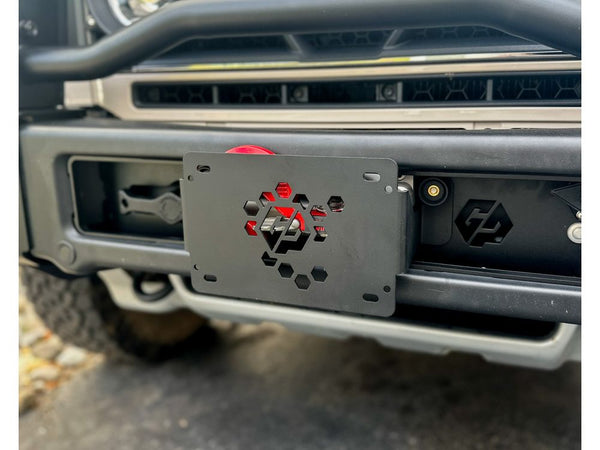

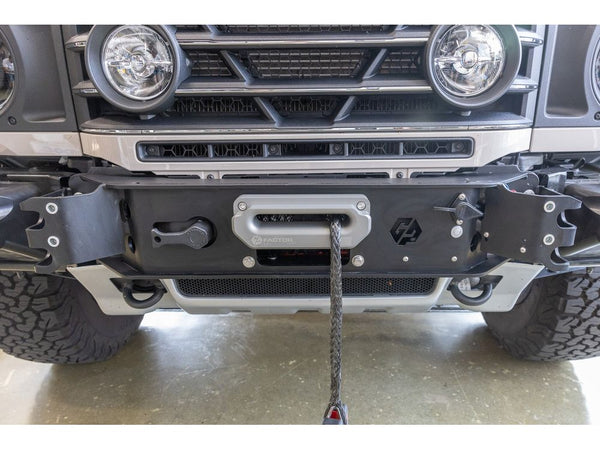

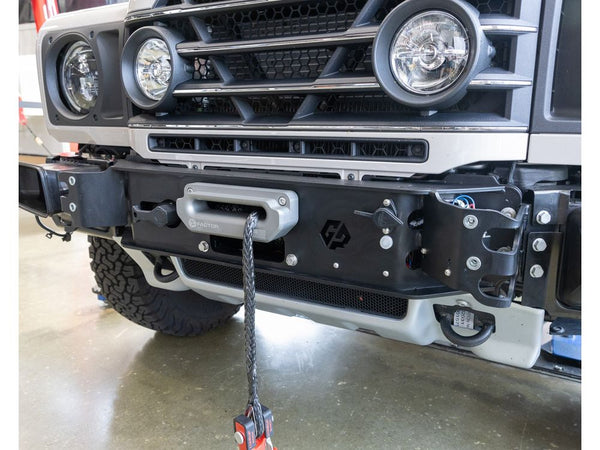

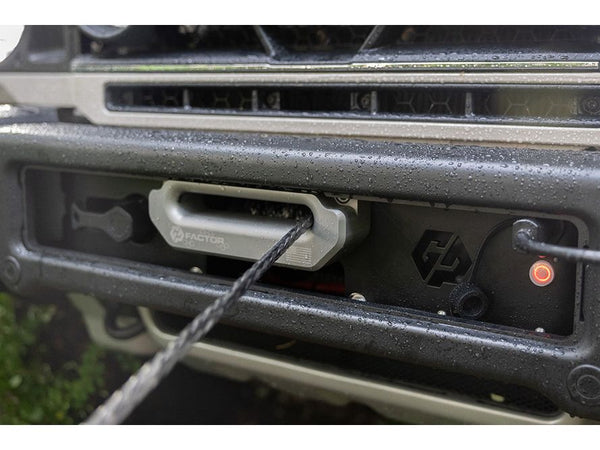

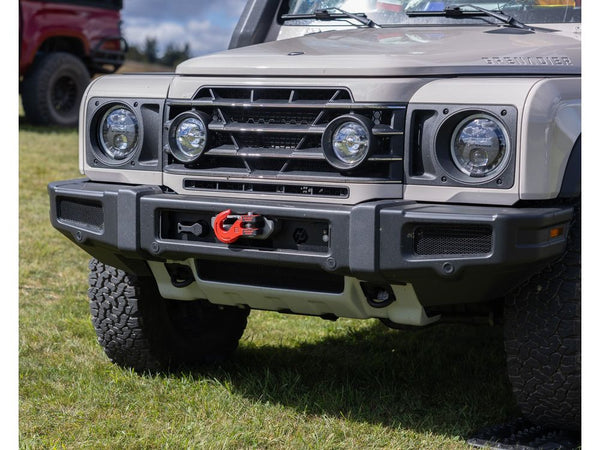

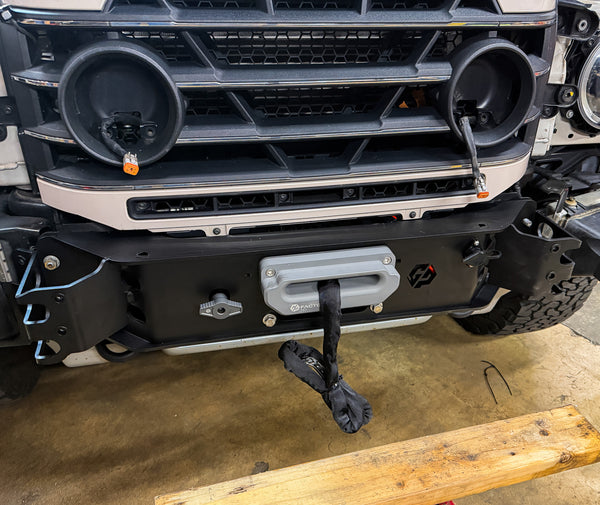

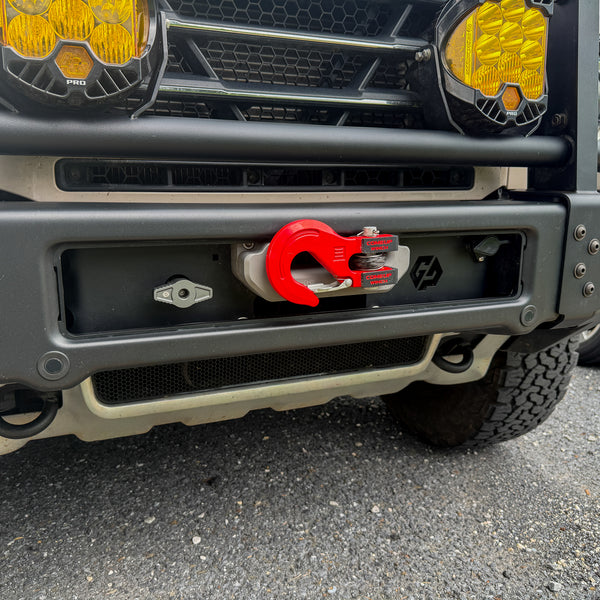

Transform your Ineos Grenadier's factory bumper into a powerful asset with our comprehensive winch kit. This kit seamlessly integrates into the original bumper shell, preserving the vehicle's stock appearance without requiring any alterations. Featuring the robust Come Up 12.5k SealSlim winch, equipped with 65ft of synthetic line (55ft usable), Increasing the length of the usable line over the factory winch by 83%, ensures you're prepared for any off-road challenge.

Included in the Kit:

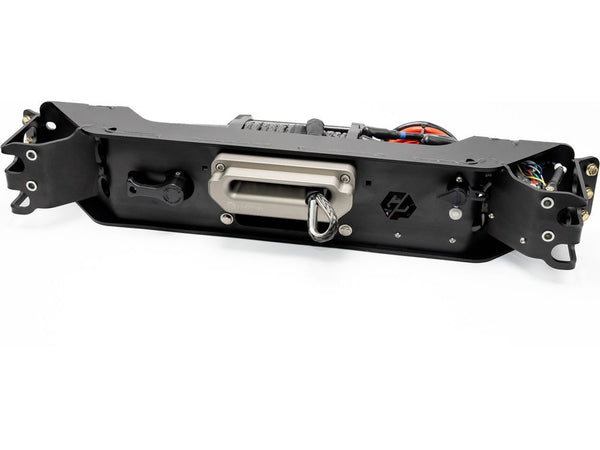

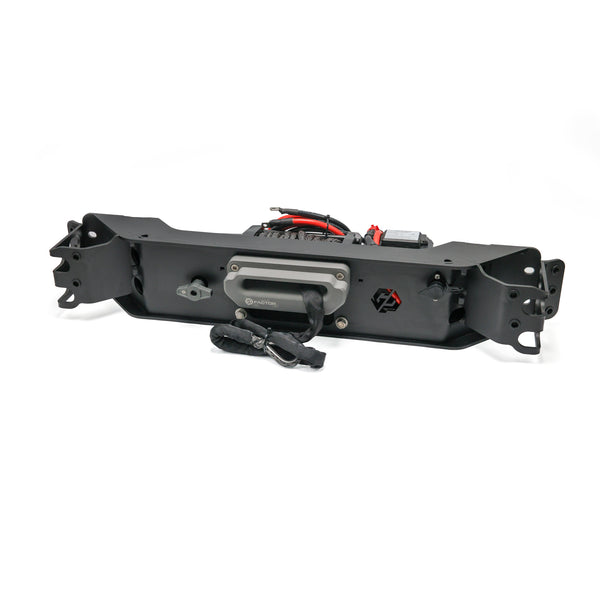

GP Factor Winch Mount, Fairlead, GP (Class 4 Designs) Storage Pouch (THIS IS EXCLUSIVE FOR THE FIRST 100 KITS INCLUDED FOR FREE), Hardware for Installation, Come up Seal Slim 12.5 RS Winch.

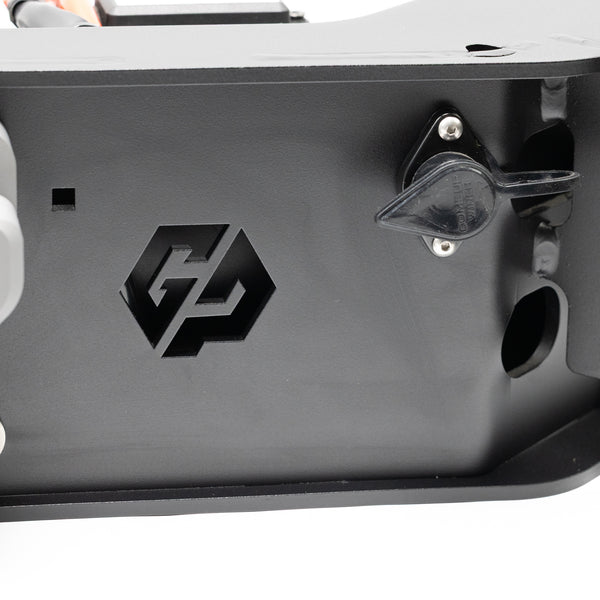

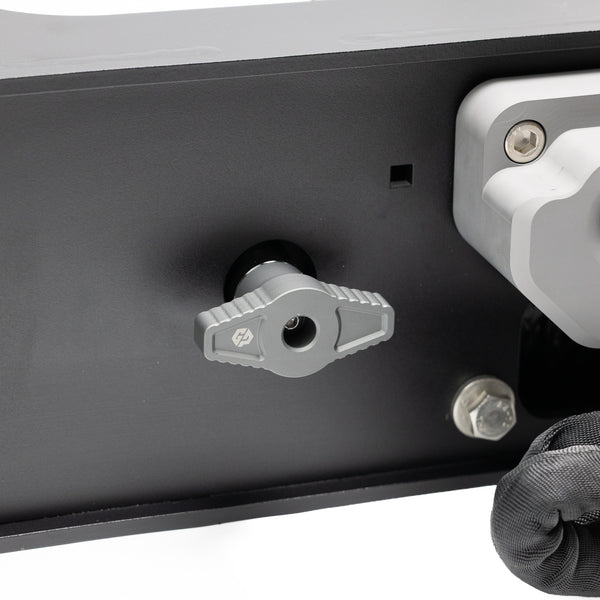

Specifications for Winch Mount:

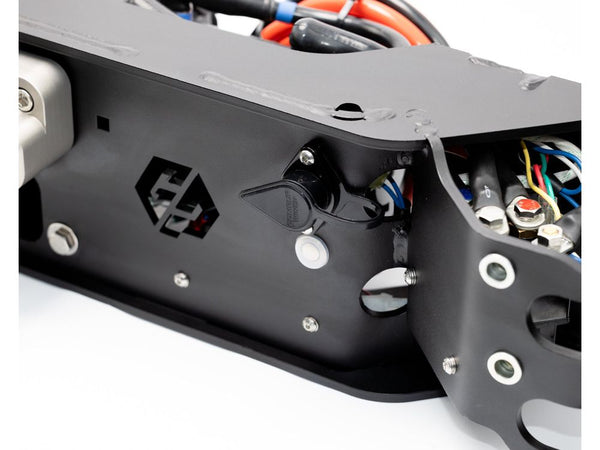

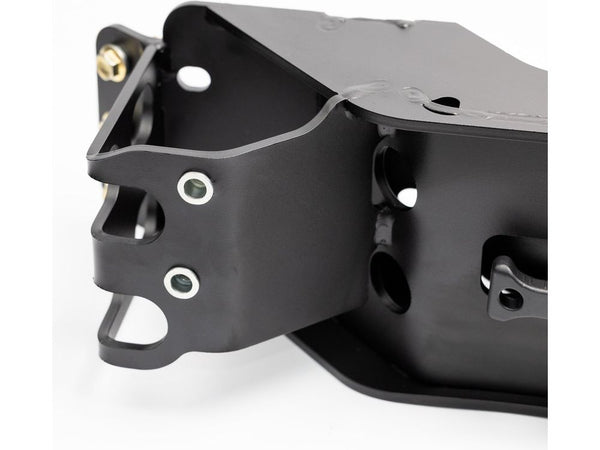

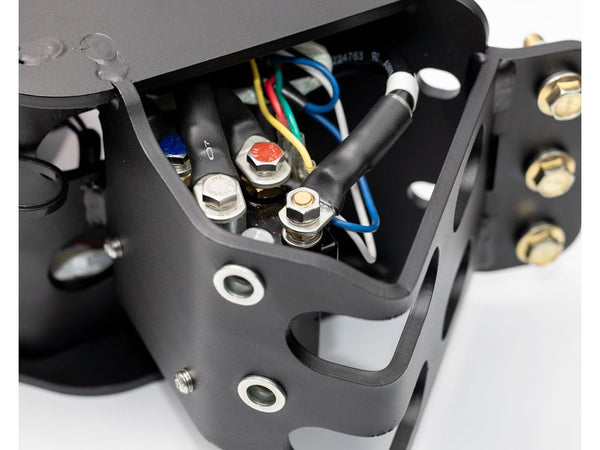

Material: Constructed from full 1/4" steel, ensuring durability and strength.

Finish: Coated with Zinc Primer and finished in textured black, providing both corrosion resistance and a sleek factory appearance.

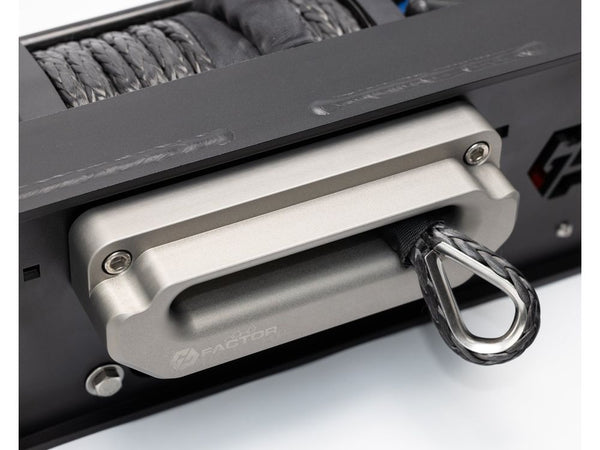

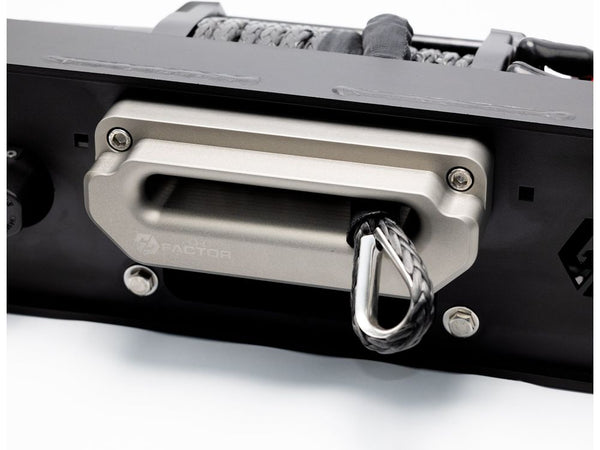

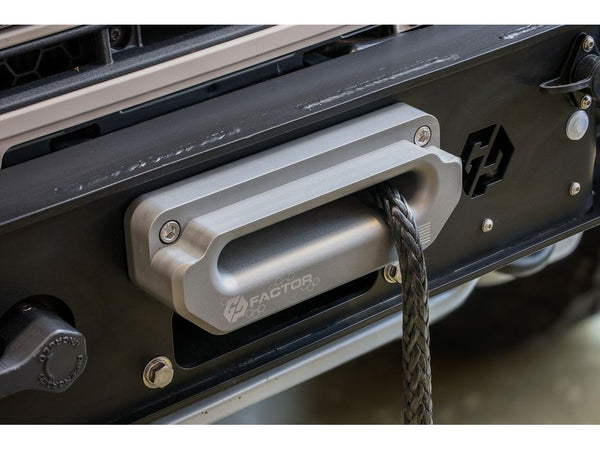

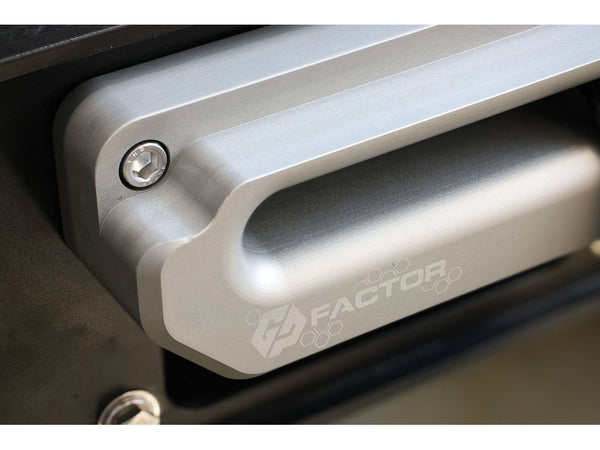

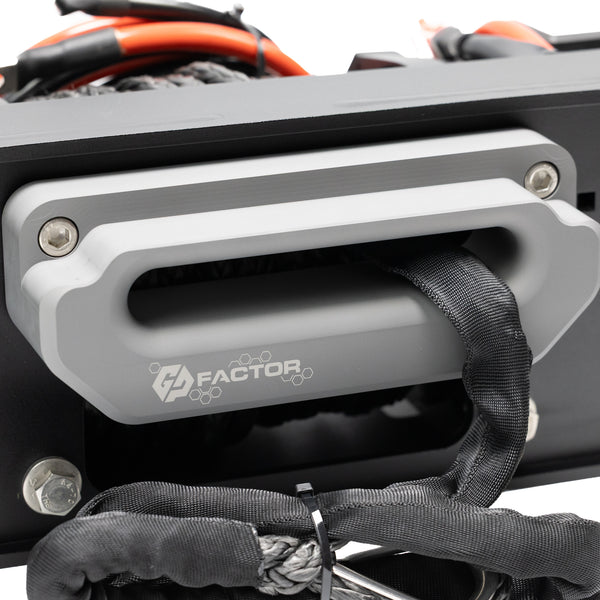

Fairlead: Proprietary 6061-T6 2.25" thick Billet Aluminum fairlead with Type 3 Hardcoat Grey Anodized Finish

Fitment: Compatible with all Ineos Grenadier Models featuring the factory metal bumper. Maintain its original aesthetics

Winch Mounting Configuration: Foot Foward

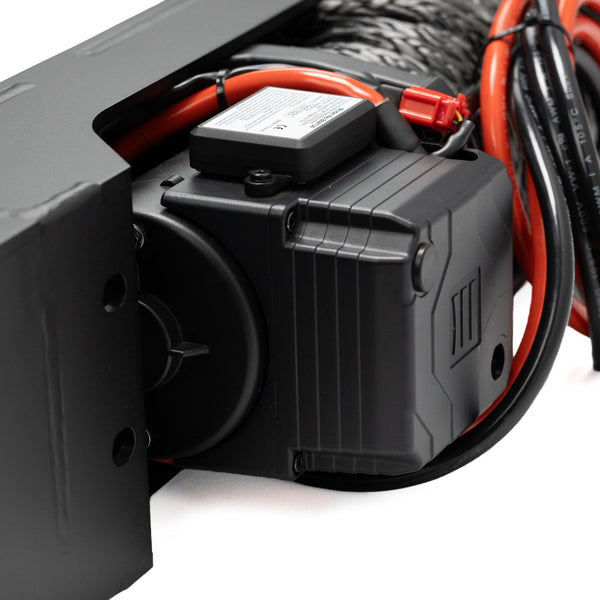

Specifications for Come Up Seal Slim 12.5 RS Winch:

*THIS WINCH IS ONLY AVAILABLE IN THIS KIT AS IT WAS SPECIFICALLY MADE TO FIT THIS KIT, VEHICLE AND PER THE SPECIFICATIONS NEEDED.

• Rated line pull: 5,670 kg / 12,500 lb single line
• Line speed ( 1^st layer): 7.7 mpm / 25.3 fpm 45 A at 12V no load
                                       0.9 mpm / 3.0 fpm 470 A at 12V full load
• Motor: 3,730 w / 5.0 hp 12V series wound
• Gear ratio: 3-stage planetary 225:1
• Clutch (freespooling): Rotating ring gear
• Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)

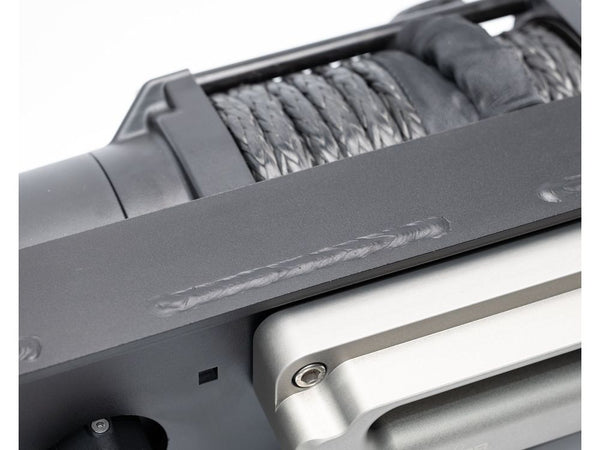

• Winch construction: Aluminum die cast housings with steel drum
• Drum size: 63.5 mm x 227L mm (2.5” x 8.9”L)

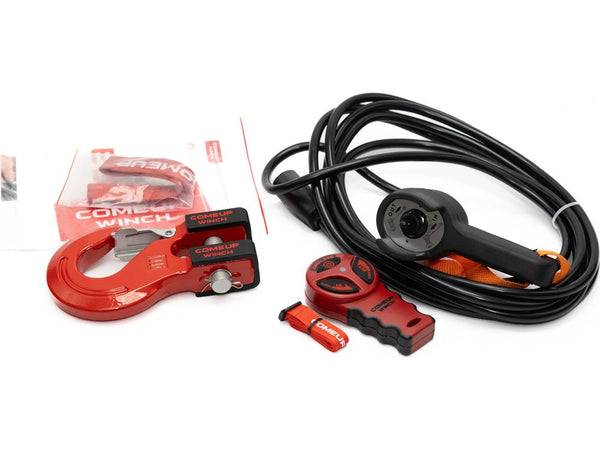

• Control: Both built-in digital two way signal wireless remote control and waterproof remote with thermometric indicator LED w/ 5 m (17') cord

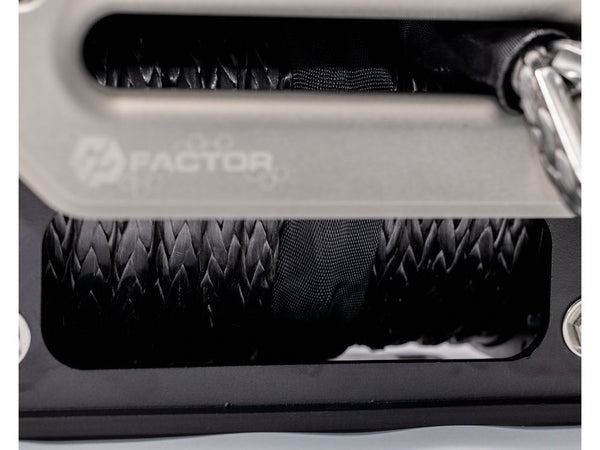

• Rope type: Synthetic rope
• Rope size: 65' - (55' Approx Usable)
• Mounting bolt pattern: 254 mm x 114 mm (10” x 4.5”)
• Mounting : Foot forward mounting workable
• Finish : Matte black powder-coated
  * Remark: Only foot forward mounting can meet SAE J706
